Gigabyte GA-H110M-S2 / GA-H110M-S2 DDR3 Schematic.PDF and BoardView.TVW

100.00 RUB

   (0 reviews)
NIKE13
 Share

4 Screenshots

About This File

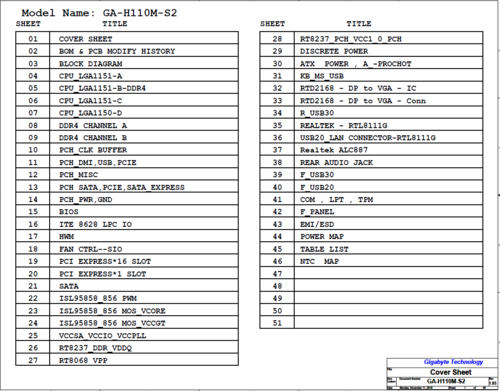

Электрическая принципиальная схема  материнских плат Gigabyte :

GA-H110M-S2 Rev 1.02, 1.03, 1.05

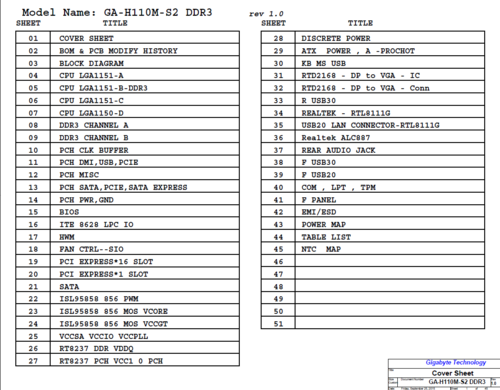

GA-H110M-S2 DDR3 Rev 1.0

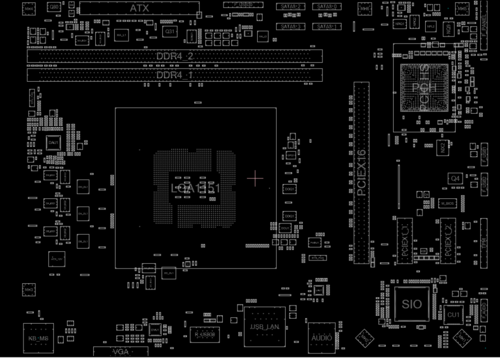

Cхематическое расположение элементов (boardview *.tvw)  материнских плат Gigabyte :

GA-H110M-S2 Rev 0.1-1.0, 1.03B

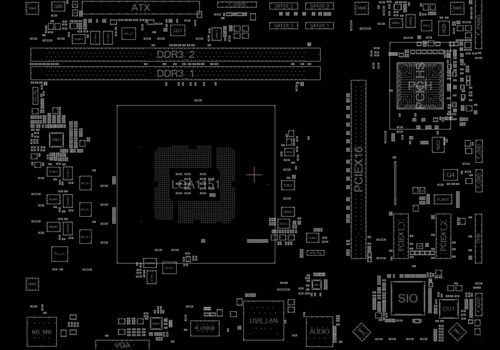

GA-H110M-S2 DDR3 Rev 1.0

File quality

2. Original - with search

Opening program boardview
