Gigabyte GA-H110M-S2PV / GA-H110M-S2PV DDR3 Rev 1.0, 1.01 Schematic.PDF and BoardView.TVW

100.00 RUB

   (0 reviews)
NIKE13
 Share

4 Screenshots

About This File

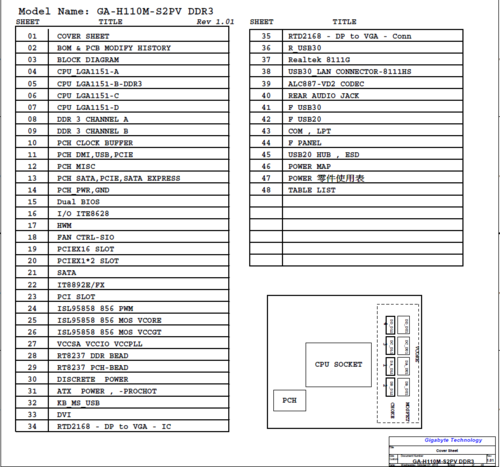

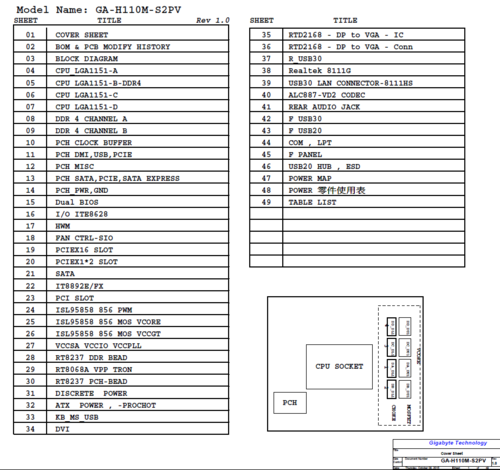

Электрическая принципиальная схема  материнских плат Gigabyte :

GA-H110M-S2PV Rev 1.0, 1.01

GA-H110M-S2PV DDR3 Rev 1.01

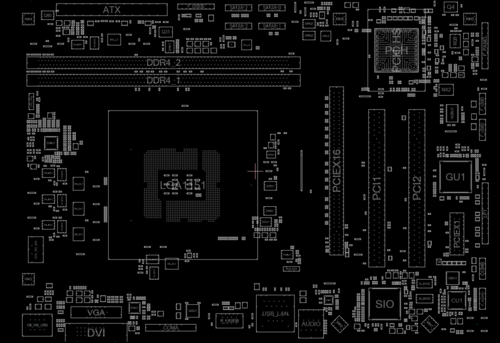

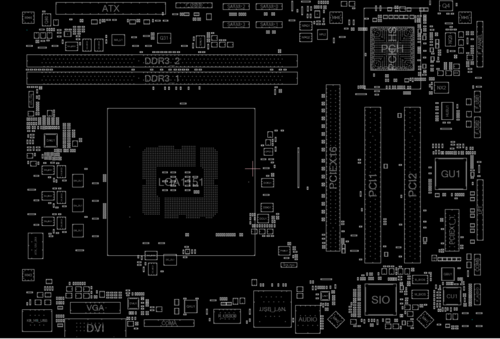

Cхематическое расположение элементов (boardview *.tvw)  материнских плат Gigabyte :

GA-H110M-S2PV Rev 0.1-1.0

GA-H110M-S2PV DDR3 Rev 1.0, 1.01

File quality

2. Original - with search

Opening program boardview

https://devicedb.xyz/dev/file/157-boardviewer-2018/
 Share
Previous File Gigabyte GA-H110M-S2V / GA-H110M-S2V DDR3 Rev 1.0, 1.01 Schematic.PDF and BoardView.TVW
Next File Gigabyte GA-H110M-S2PT Rev 1.0 Schematic.PDF and BoardView.TVW
