Gigabyte GA-B150M-Power/GA-B150M-Power2/GA-B150M-Power-EC/GA-B150M-Power2-EC Schematic.PDF and BoardView.TVW

100.00 RUB

   (0 reviews)
NIKE13
 Share

4 Screenshots

About This File

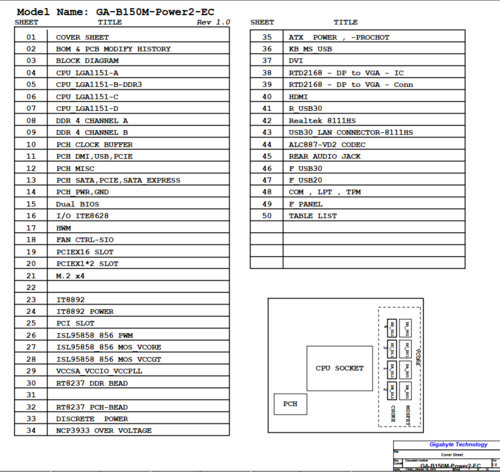

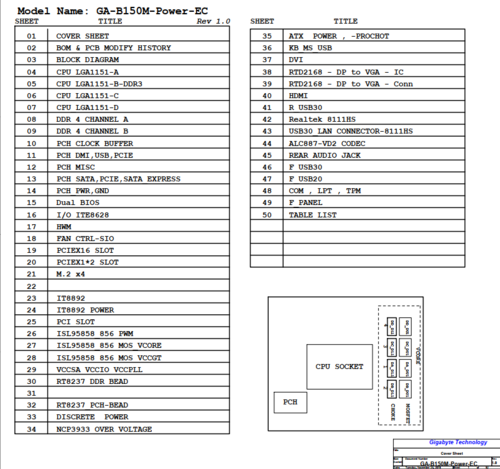

Электрическая принципиальная схема  материнских плат:

GA-B150M-Power-EC Rev 1.0

GA-B150M-Power2-EC Rev 1.0

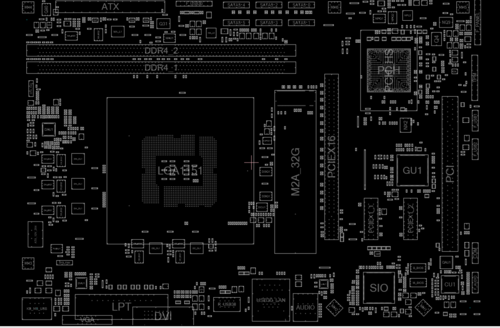

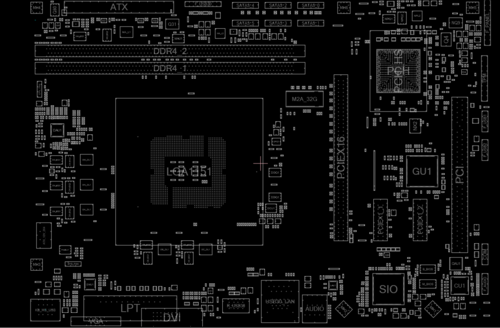

Cхематическое расположение элементов (boardview *.tvw)  материнских плат:

GA-B150M-Power Rev 0.1, 1.0

GA-B150M-Power2 Rev 1.0B

File quality

2. Original - with search

Opening program boardview

https://devicedb.xyz/dev/file/157-boardviewer-2018/
 Share
Previous File Gigabyte GA-B150M-SE-SI Rev 1.0, 1.1 Schematic.PDF and BoardView.TVW
Next File Gigabyte GA-B150M-PIO-SI / GA-B150M-PIO-SI R3 Rev 1.0 Schematic.PDF and BoardView.TVW
