Gigabyte GA-H81M-D2W / GA-H81M-D2W WG Rev 1.0, 1.01 Schematic.PDF and BoardView.TVW/. ASC

100.00 RUB

   (0 reviews)
NIKE13
 Share

3 Screenshots

About This File

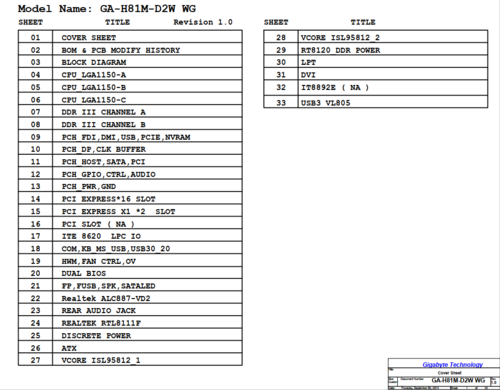

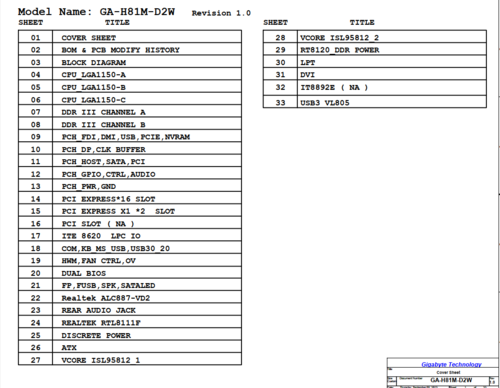

Электрическая принципиальная схема материнской платы GA-H81M-D2W Rev 1.0 и GA-H81M-D2W WG Rev 1.0, 1.01

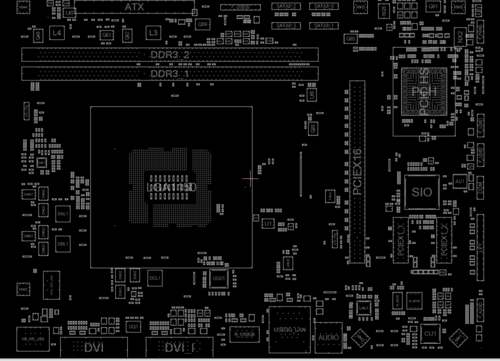

Схематическое расположение элементов (boardview *.tvw) материнской платы GA-H81M-D2W Rev 1.0, 1.01

Схематическое расположение элементов (boardview *.asc) материнской платы GA-H81M-D2W WG Rev 1.0

File quality

2. Original - with search

Opening program boardview

https://devicedb.xyz/dev/file/157-boardviewer-2018/
